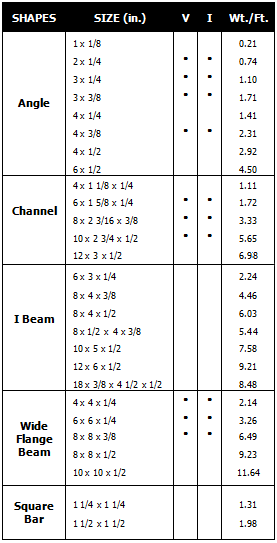

STRUCTURAL SHAPES

Pultruded fiberglass shapes are available in Isophthalic Polyester Resin (Dark Gray) or Vinyl Ester Resin (Beige)

Lead Time on 'Non-Stocked' items is approximately 9-10 weeks



- ANGLE -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
1" x 1" x 1/8"	.19	9-10 Weeks
2" x 2" x 1/4"	.75	Stocked Item
3" x 3" x 1/4"	1.18	Stocked Item
3" x 3" x 3/8"	1.73	Stocked Item
4" x 4" x 1/4"	1.59	Stocked Item
4" x 4" x 3/8"	2.35	Stocked Item
4" x 4" x 1/2"	3.08	Stocked Item



- CHANNEL -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
4" x 1 3/8" x 3/16"	.98	Stocked Item
4" x 1 1/8" x 1/4"	1.18	9-10 Weeks
6" x 1 5/8" x 1/4"	1.80	Stocked Item
8" x 2 3/16" x 3/8"	3.58	Stocked Item
10" x 2 3/4" x 3/8"	4.46	9-10 Weeks
10" x 2 3/4" x 1/2"	5.96	Stocked Item
12" x 3" x 1/2"	6.98	9-10 Weeks

-

- I BEAM -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
6" x 3" x 1/4"	2.36	Stocked Item
8" x 1/2" x 4" x 3/8"	5.44	Stocked Item

-

- WIDE FLANGE BEAM -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
4" x 4" x 1/4"	2.37	Stocked Item
6" x 6" x 1/4"	3.60	Stocked Item
8" x 8" x 3/8"	7.16	Stocked Item

-

- EMBEDMENT ANGLE -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
1" x 1/2" x 1/4"	.92	Stocked Item
1 1/2" x 1 1/2" x 1/4"	1.04	Stocked Item
2" x 1 1/2" x 1/4"	1.15	Stocked Item
3" x 2" x 1/4"	1.45	9-10 Weeks

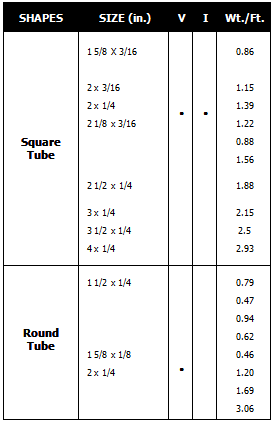

- SQUARE TUBE -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
1 5/8" x 1 5/8" x 3/16"	.88	9-10 Weeks
2" x 2" x 3/16"	1.10	Stocked Item
2" x 2" x 1/4"	1.44	9-10 Weeks
2 1/8" x 1 5/8" x 3/16"	1.19	9-10 Weeks
2 1/2" x 2 1/2" x 1/4"	1.88	9-10 Weeks
3" x 3" x 1/4"	2.26	9-10 Weeks
3 1/2" x 3 1/2" x 1/4"	2.67	9-10 Weeks
4" x 4" x 1/4"	3.08	Stocked Item

-

- ROUND TUBE -
SIZE  (INCHES)	WEIGHT PER FOOT  (LBS)	AVAILABILITY
1 1/2" x 1 1/4"	.81	9-10 Weeks
1 5/8" x 1/8"	.42	9-10 Weeks
2" x 1/4"	1.12	Stocked Item
