AMERIRAIL™ Handrail Systems

Canadian Composite Structures’s AmeriRail™ Fiberglass Reinforced Plastic (FRP) Handrail Systems are safe, OSHA compliant, corrosion resistant, virtually maintenance free, and easy to install.

AGL’s standard industrial AmeriRail™ Handrail is a 2-rail system with kickplate fabricated from its high strength pultruded structural shapes with UV inhibitors manufactured into the resin and synthetic surfacing veils that allow a resin rich surface. Standard systems are produced in safety yellow, with other colors available upon request.

AmeriRail™ Handrails are available prefabricated and factory assembled or can be shipped in components for easy on site field fabrication. A factory applied UV coating is recommended when handrails will be utilized outdoors.


Handrail Styles

Canadian Composite Structures’s OSHA compliant handrails are offered in four versions: light duty, standard, heavy duty, and an ergonomic oval system. Custom handrail systems for other applications including landscaping, architectural and ADA compliance are also available upon special order request.

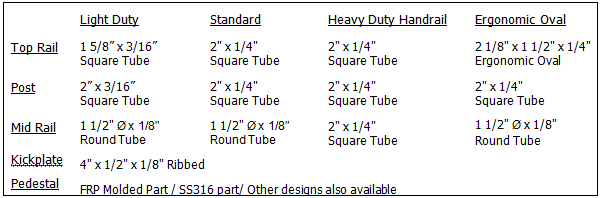

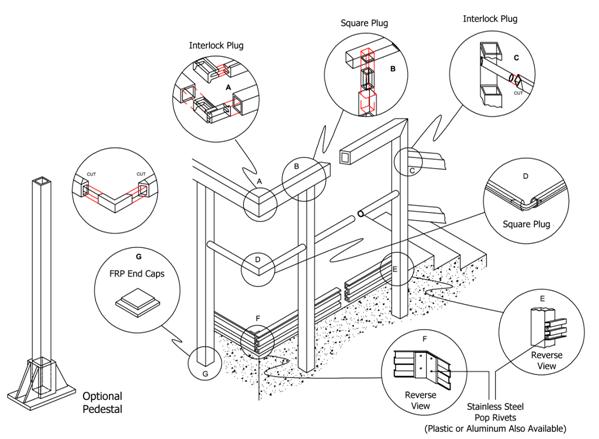

Handrail Parts


Square Tube

Round Tube Mid Rail

Ergonomic Oval Top Rail

Kickplate

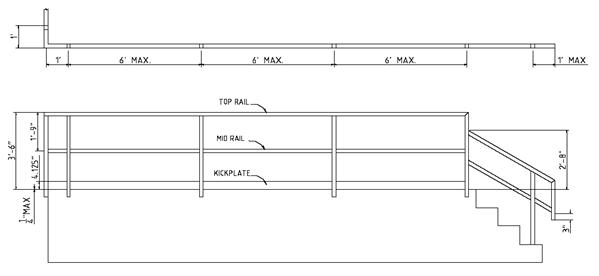

Typical Handrail System


AmeriRail™ Post Installation Guide


to 6" I-Beam with Spacer

to 6" WF-Beam with Spacer

to 6" Channel with Spacer

to Channel without Spacer

to Steel Plate without Spacer

OSHA Standard
